Description
Industrial protection for overhead structures and restricted routes

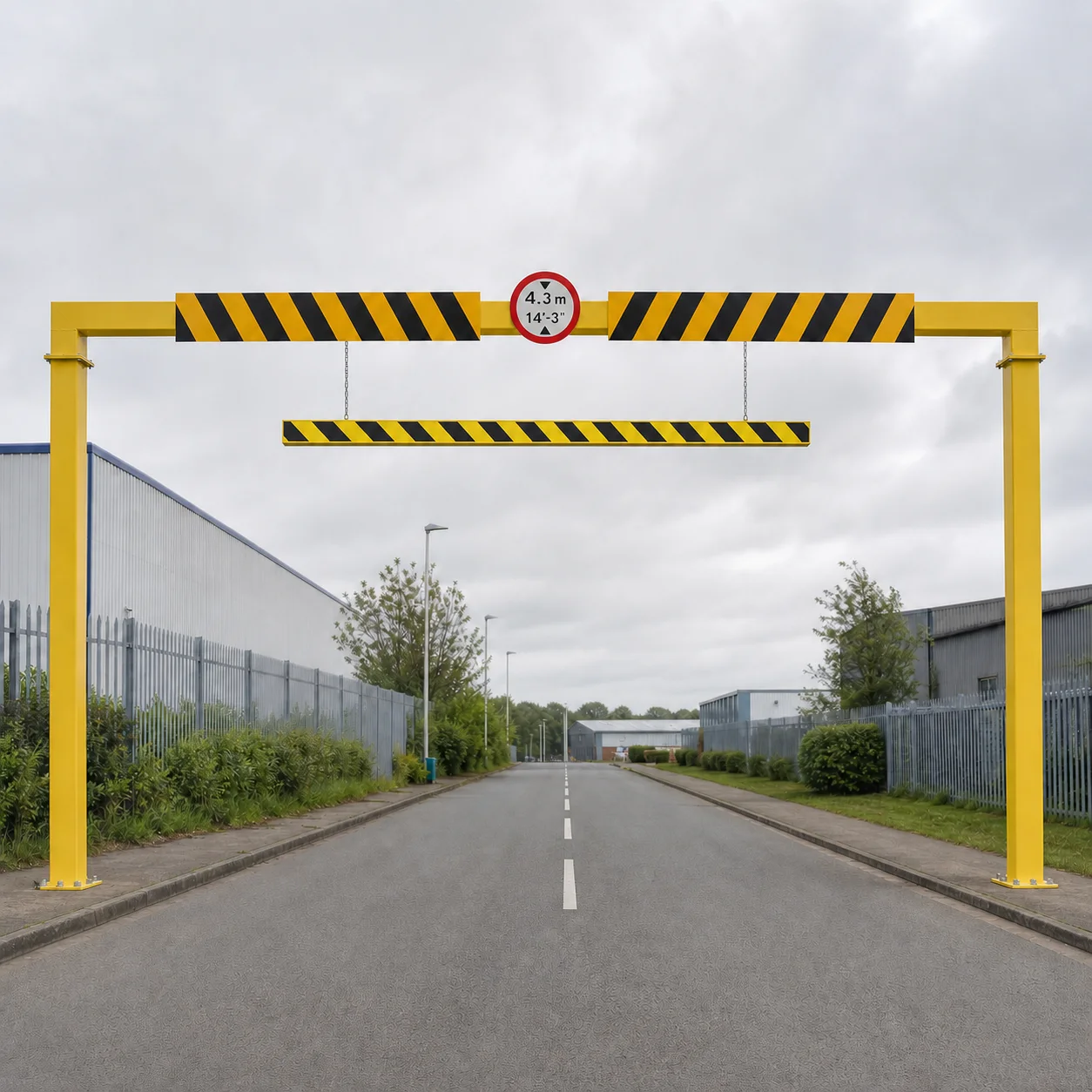

The Ultra Heavy Duty Fixed Height Barrier creates a substantial restriction ahead of bridges, canopies, loading areas and other overhead hazards. Its simple portal uses heavy square box-section posts and crossbeam components that can be replaced individually if the barrier is struck, reducing the need to replace the complete system.
Standard configurations cover wide commercial entrances, with selectable widths, restriction heights and yellow or red finishes. Warning panels, maximum-height signs and a suspended knocking bar can be added to improve visibility and provide an early physical warning.
Configuration range
- Heavy 200mm square or ultra-heavy 250mm square construction options.
- Widths from 5m to 10m.
- Restriction heights from 2.1m to 5.1m in the online configuration.
- Surface-fixed or root-fixed installation options.
- Galvanised and coated finishes available.
- Typical lead time: 10–15 working days.
Foundations and clearance
The foundations, anchors and steel section must be selected for the width, height, site exposure and likely traffic. Confirm the measured clearance against the protected structure and place the barrier far enough in advance for vehicles to stop or turn safely. Nationwide installation can be discussed for suitable projects.
